Corrections

Corrections

Chapter 2 Page 162

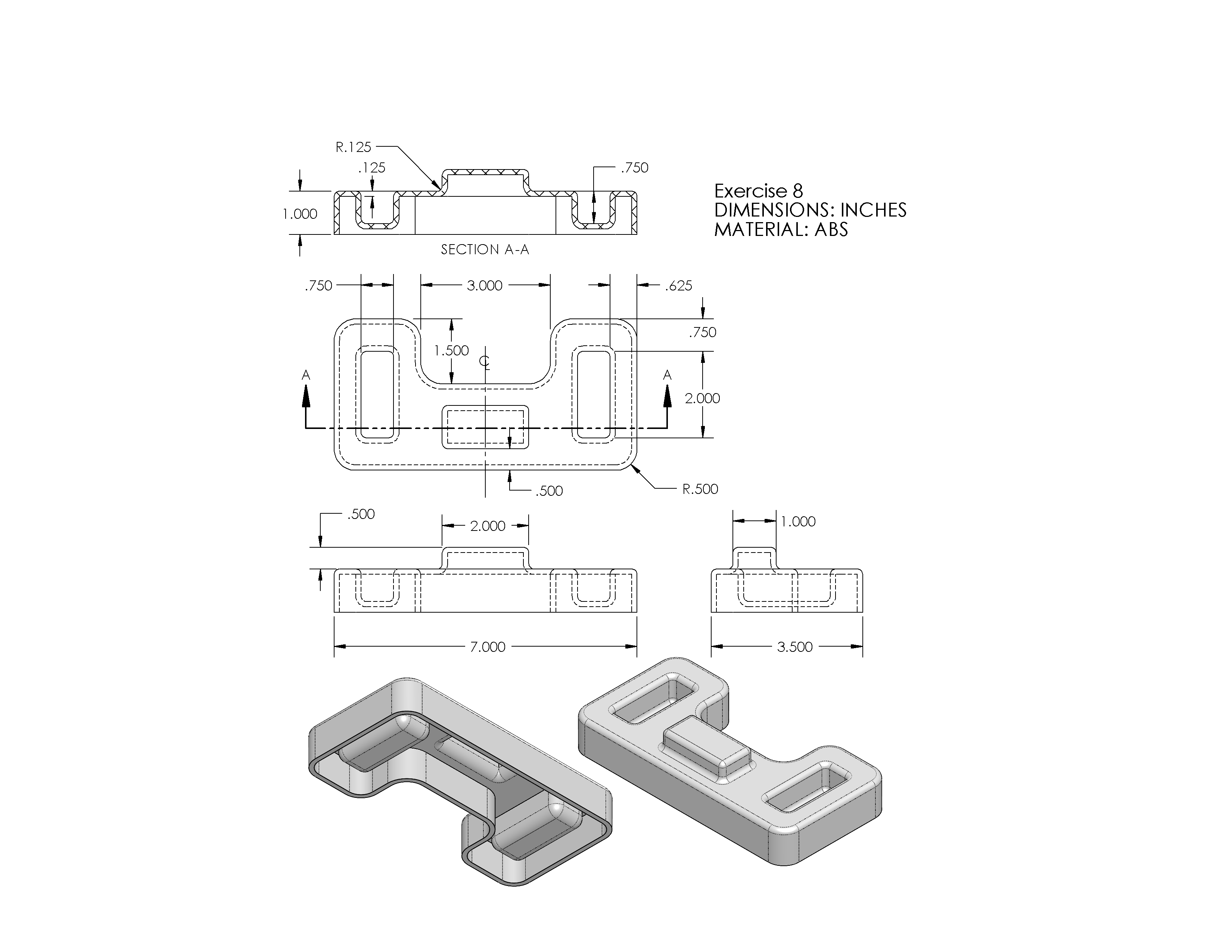

Exercise 8. The shell thickness dimension is missing from the provided figures. It should be .125".

Chapter 2 Page 164

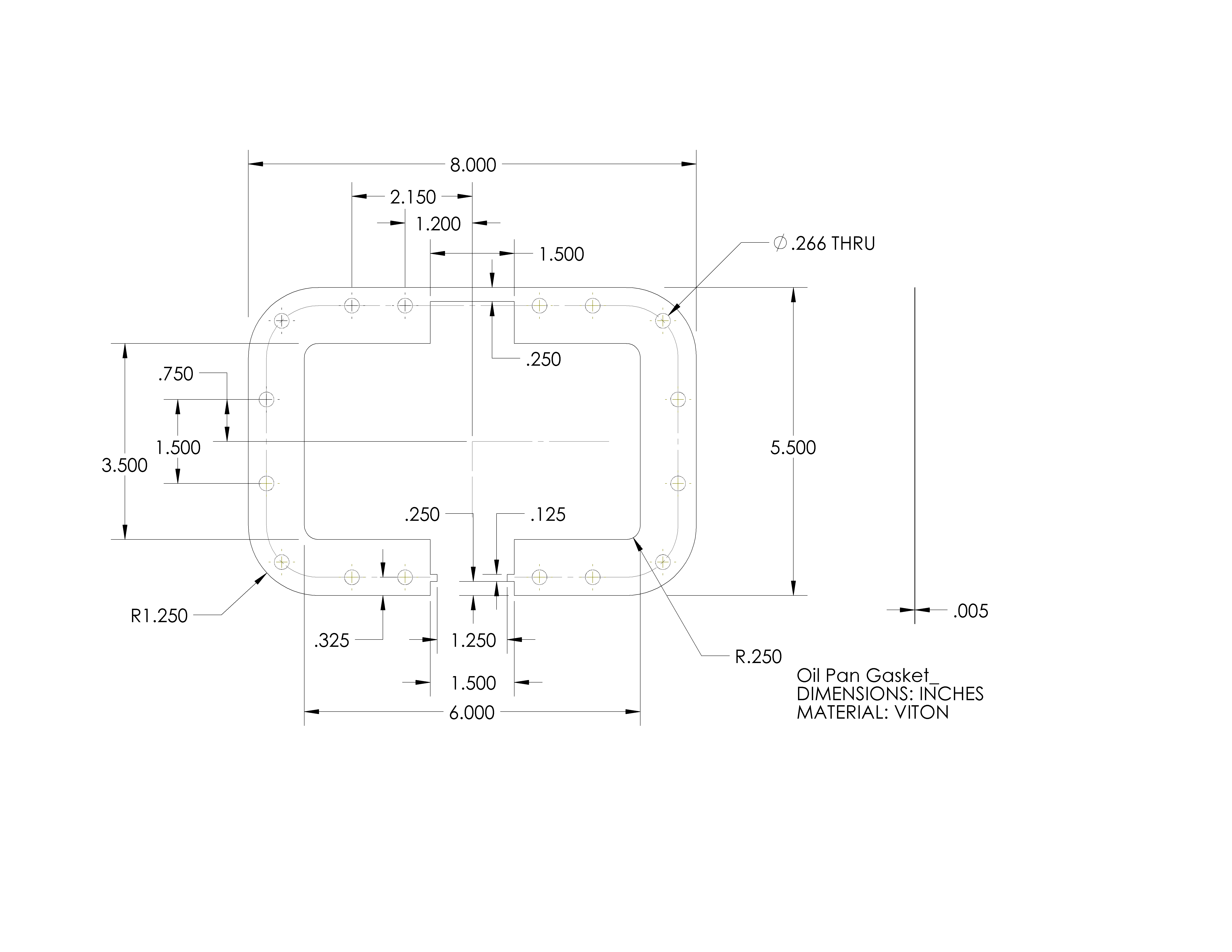

The thickness dimension for the Oil Pan Gasket should be 0.005". Please use the corrected image below.

Chapter 3 Page 340

Step 16.9, The second sentence should read, "If the path had been a straight line, a "Cut Extrude" would produce a similar result."

Chapter 3 Page 348

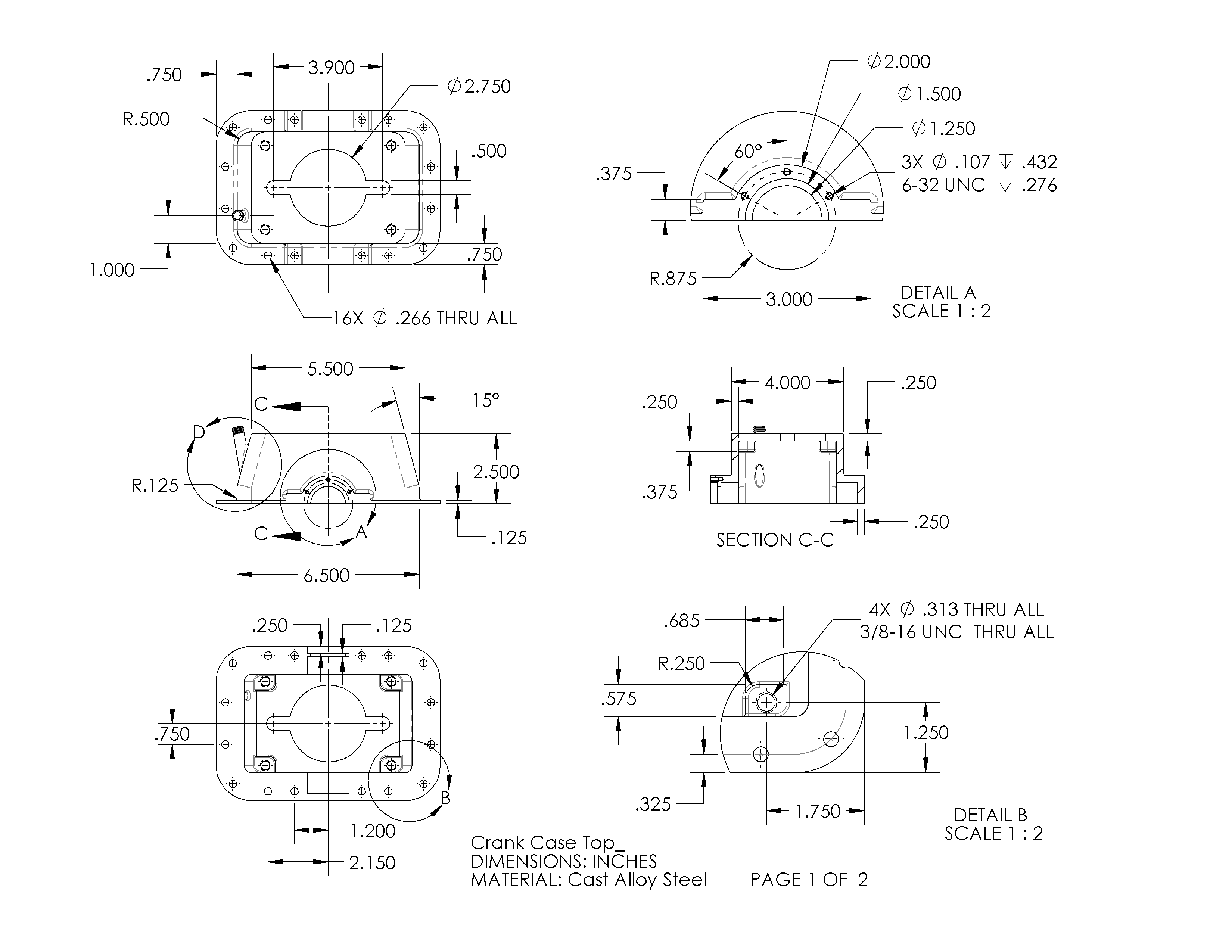

The fillet radius of the four inside bosses located on the underside of the top of the Crank Case are missing. Please use the corrected image below.

Unless otherwise specified all fillets R 0.050"

Chapter 5 Page 532

The Extra Credit should direct you to add a key instead of a keyway as the keyways already exist.
