Corrections

Corrections

Chapter 2 Page 8

Step 9. should say to show Sketches 3 and 4.

Chapter 2 Page 22

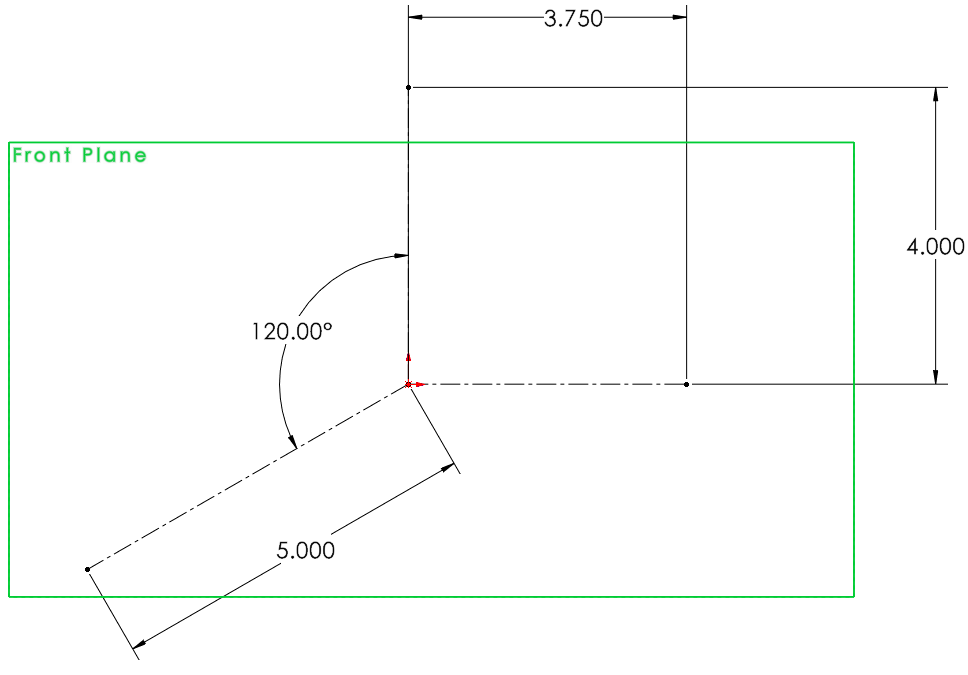

Step 1. The Vertical Dimension should be 4.00", not 3.00". See the image below.

Chapter 6 Page 27

Step 2. For Sweep Path, select Sketch1 also from the FeatureManager tree.

Chapter 16 Page 4

Before step 2 follow these additional steps: Using the FeatureManager tree, right-click on the name HOUSING and select FLOAT before adding any new mates.
