Corrections

Corrections

Chapter 1 Page 15

Step 1.13 should direct you to go to the menu "Tools, Options, Document Properties", as shown in the corresponding image, instead of Document Options.

Chapter 2 Page 161

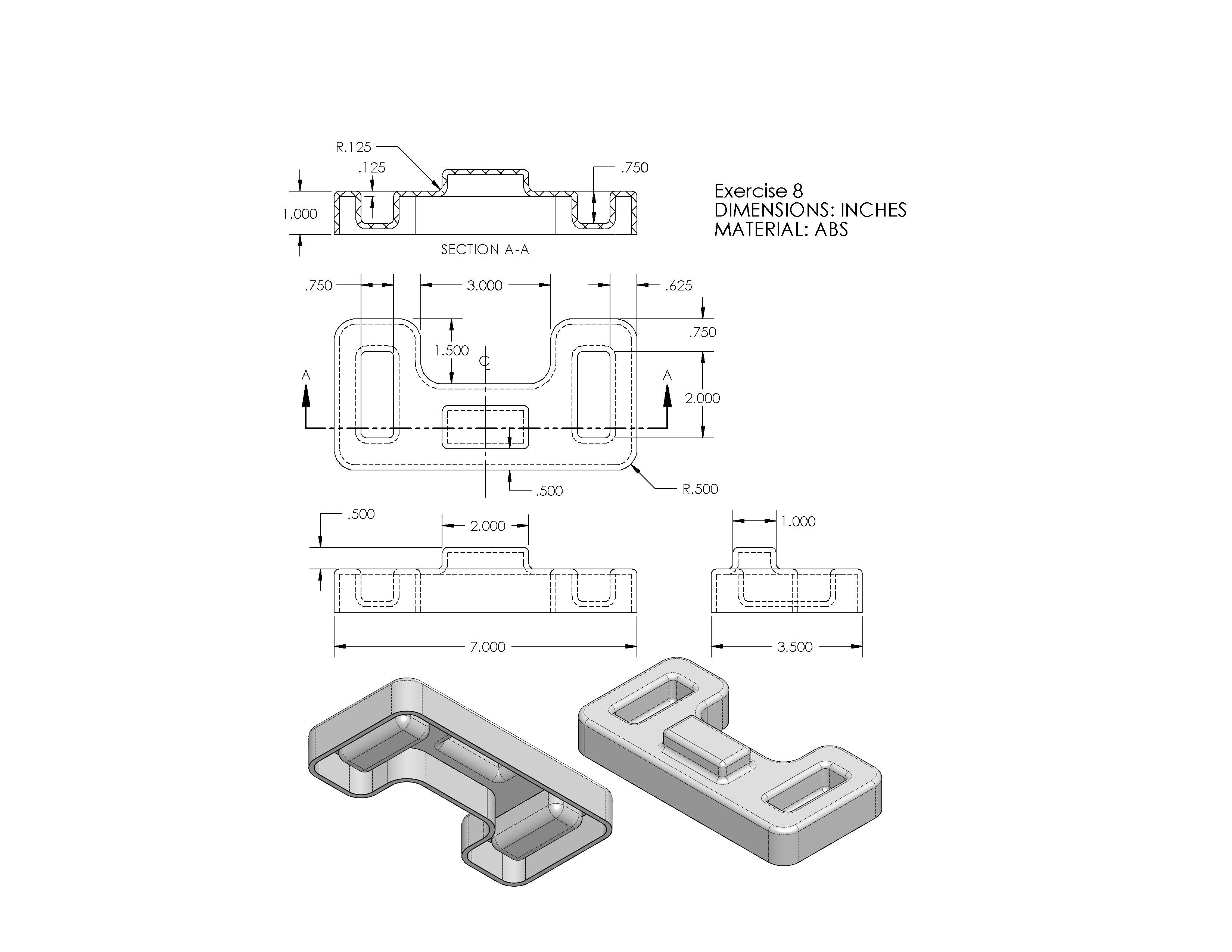

Exercise 8. The shell thickness dimension is missing from the provided figures. It should be .125".

Chapter 2 Page 163

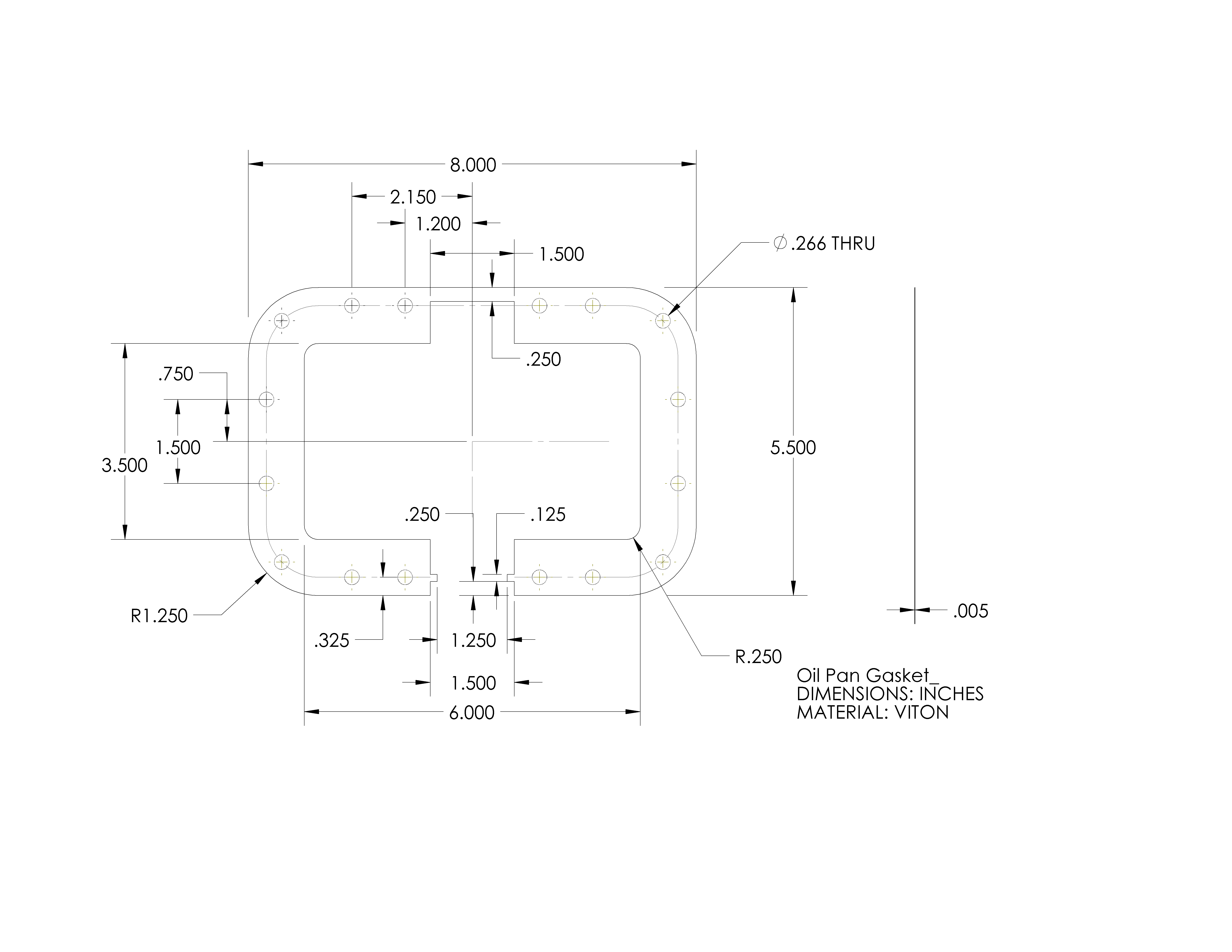

The thickness dimension for the Oil Pan Gasket should be 0.005". Please use the corrected image below.

Chapter 3 Page 338

Step 16.9, The second sentence should read, "If the path had been a straight line, a "Cut Extrude" would produce a similar result."

Chapter 3 Page 346

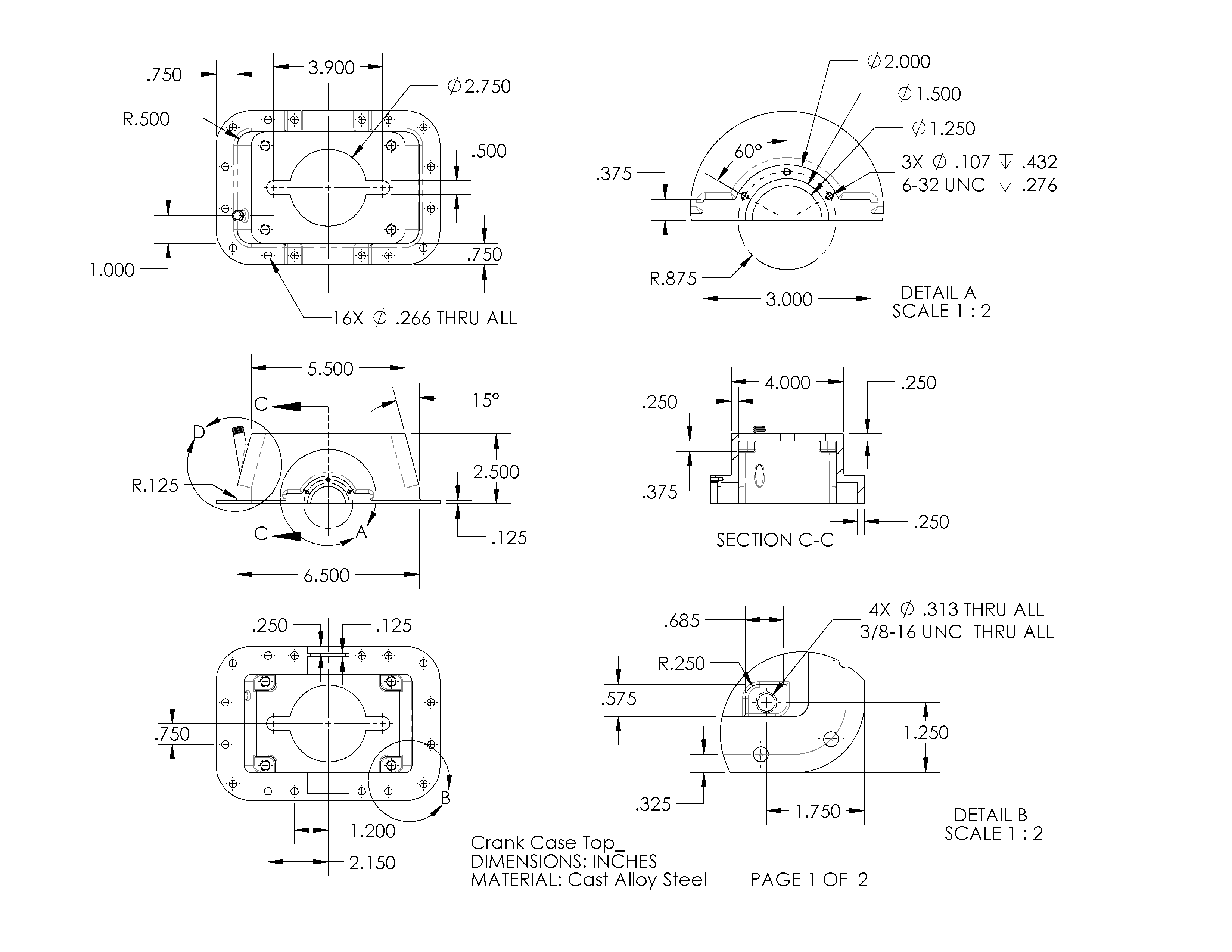

The fillet radius of the four inside bosses located on the underside of the top of the Crank Case are missing. Please use the corrected image below.

Unless otherwise specified all fillets R 0.050"

Chapter 5 Page 530

The Extra Credit should direct you to add a key instead of a keyway as the keyways already exist.

Chapter 6 Page 769

Step 34.7, the second paragraph should read "... enter a value of 2,500 lbf..." instead of 1,500 lbf. Images on pages 770, 775, 781 should also read 2,500 lbf.
