Corrections

Corrections

Chapter 1 Page 14

Step 1.13 should direct you to go to the menu "Tools, Options, Document Properties", as shown in the corresponding image, instead of Document Options.

Chapter 2 Page 159

The shell thickness is not defined for exercise 8. Please use the corrected image below.

Chapter 2 Page 161

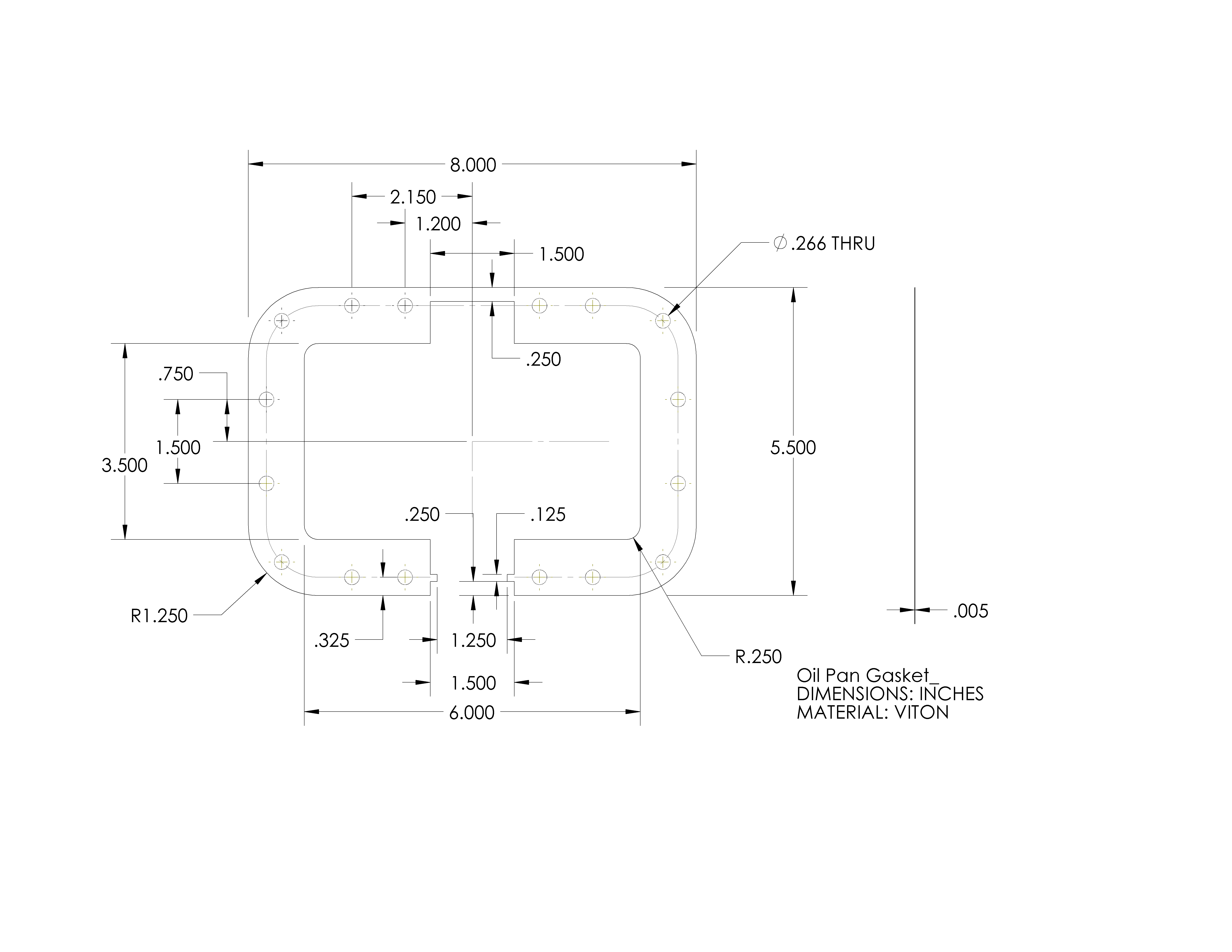

The thickness dimension for the Oil Pan Gasket should be 0.005". Please use the corrected image below.

Chapter 3 Page 336

Step 16.9, The second sentence should read, "If the path had been a straight line, a "Cut Extrude" would produce a similar result."

Chapter 3 Page 344

The fillet radius of the four inside bosses located on the underside of the top of the Crank Case are missing. Please use the corrected image below.

Unless otherwise specified all fillets R 0.050"

Chapter 5 Page 526

The Extra Credit should direct you to add a key instead of a keyway as the keyways already exist.
